초저온저장탱크

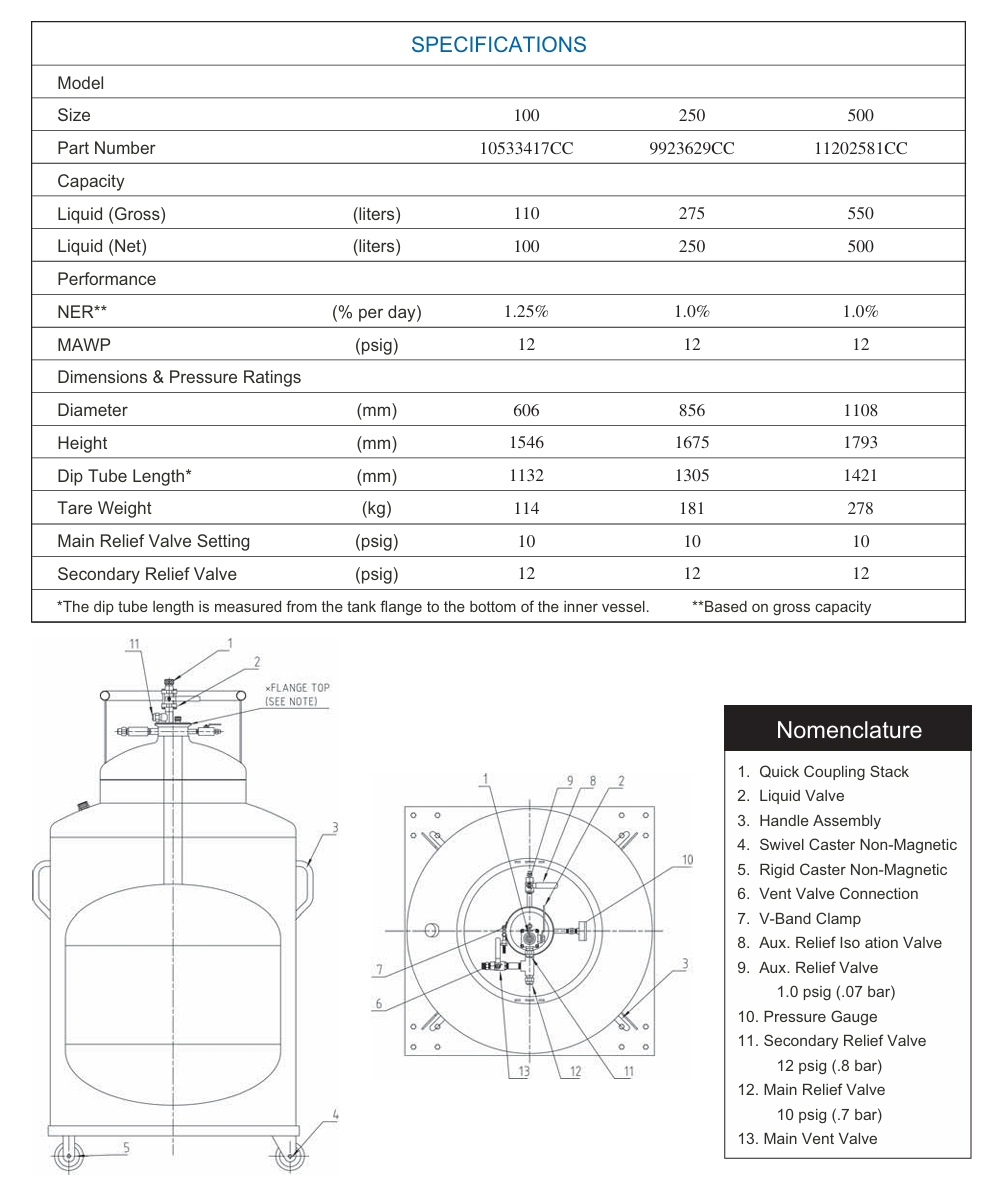

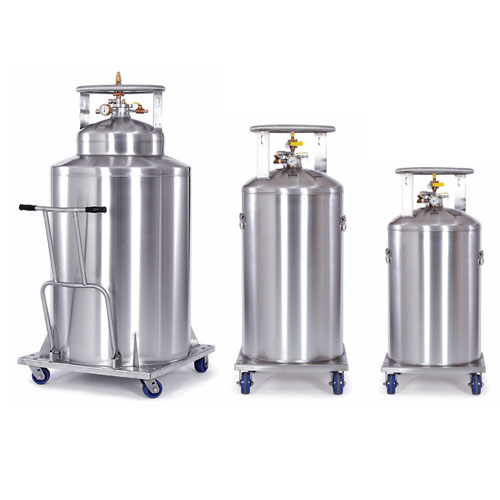

액화헬륨(LHE) 용기 100L, 250L, 500L DEWAR
ULTRA–HELIUM DEWARS
BUILT FOR RELIABLE TRANSPORT
LHE(액화헬륨) 이동형 탱크(DEWAR), 이동식바퀴포함, 사각BASE TYPE
The Ultra Helium Dewars are designed and built for
reliable transport. They are light, maneuverable and
durable, while providing superior thermal performance.
The unique neck tube design provides proven support
during transportation. The outboard caster base provides
maximum stability in a compact design
Available in sizes ranging from 60 to 500 liters, the Ultra Helium Dewars are suitable for air transport with the optional absolute pressure relief valve. All models are 100% non-magnetic for Magnetic Resonance Imagery (MRI) service
PRODUCT HIGHLIGHTS
The Ultra Helium Dewar’s controls are conveniently located on the top, with nesting fill couplings to accept various standard transfer line sizes. The optional electric pressure builder can quickly increase pressure for liquid transfer while maintaining low heat leak. It has two pre-set ranges (4 or 8 psig/0.3 or 0.6 bar) for efficient liquid helium withdrawal.
- Maximum durability and light weight
- Outstanding thermal performance
- Large ball valves for up to 3/4” (19 mm) transfer lineS
Available in sizes ranging from 60 to 500 liters, the Ultra Helium Dewars are suitable for air transport with the optional absolute pressure relief valve. All models are 100% non-magnetic for Magnetic Resonance Imagery (MRI) service
PRODUCT HIGHLIGHTS
The Ultra Helium Dewar’s controls are conveniently located on the top, with nesting fill couplings to accept various standard transfer line sizes. The optional electric pressure builder can quickly increase pressure for liquid transfer while maintaining low heat leak. It has two pre-set ranges (4 or 8 psig/0.3 or 0.6 bar) for efficient liquid helium withdrawal.
- Maximum durability and light weight
- Outstanding thermal performance
- Large ball valves for up to 3/4” (19 mm) transfer lineS
